Description

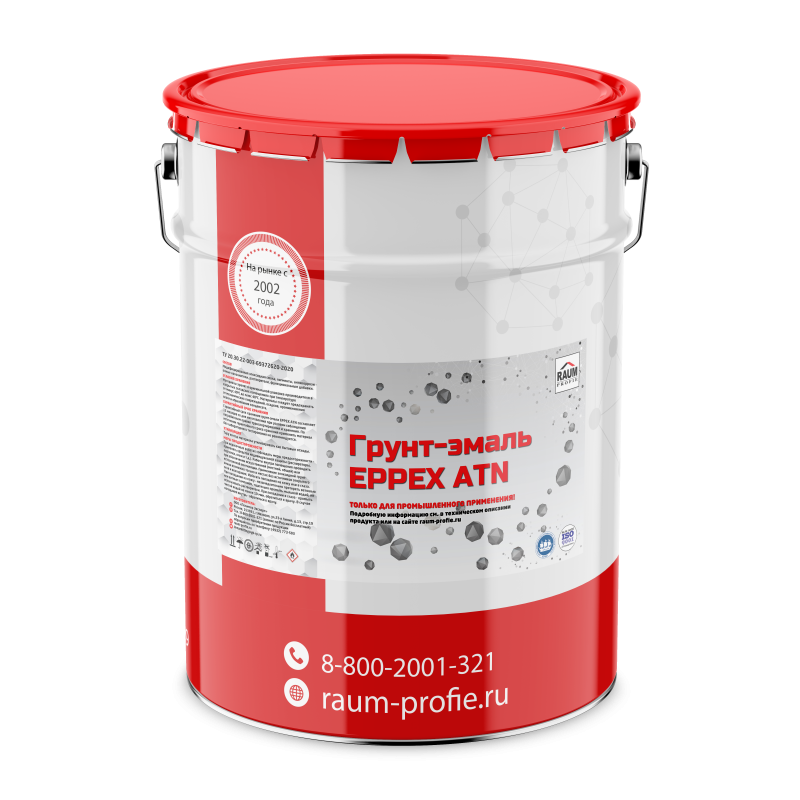

Two component chemically resistant thickfilm epoxy primer-enamel.
Scope and specifics of application
The primer-enamel EPPEX ATN can be used as a primer layer, as well as an independent finishing coating in the coating system for anti-corrosion protection of metal structures, the outer surface of tanks, equipment, engineering products, metal structures. It has high chemical resistance and mechanical strength.
It is used as a primer or intermediate coating for epoxy and polyurethane based coating materials in complex protection systems as well as an independent coating inside premises or under a roof.
Information on the material resistance to various media is available on request.
Main applications: chemical industry, oil and gas industry, power engineering..
Instruction for use
During refinishing mechanical cleaning is allowed to grade 3 to GOST 9.402-2004 (St 3 or St 2 to ISO8501-1:2007; PSt 3 or PSt 2 to ISO8501-2:1994).
Residual coating thickness should be no more than 200 microns, adhesion no less than 2 MPa to ISO 4624:2002 or no more than 3 points to GOST 15140-78.
Conditions
Air humidity – no more than 80%. Ambient temperature from +15°С to +35°C. It is possible to apply at the temperature of -5 ° C, while the temperature of the primer should be at least +15 °C to provide the necessary technological characteristics. To provide curing in closed space good ventilation is needed.
The process of applying
|
Blending |
The product is two component. Component А is a dispersion of pigments and anticorrosion filler in epoxy resin. Component B is a hardener solution. Mix the contents of the containers in the supplied proportions. After mixing, use within the specified pot life. Mixing sequence: The basis (component A) is mixed with a construction mixer. Then mixed hardener (component B) is added to the basis (component A) and thoroughly mixed with a construction mixer. Attention! Careless mixing or incorrect ratio can lead to uneven curing and painting film properties weakening. |
| Proportions |
100:14,7 by weight 4:1 by volume |
|
Pot life |
at 200С – no less than 2 hours at 100С – no less than 7-8 hours |
|
Air-free spraying |
Thinning: 0-20% Nozzle diameter: 0,017-0,021" Initial pressure: 120-180 atm |
| Air spraying |
Operation viscosity: 25-40 s Thinning: 15-20% Nozzle diameter:1,6-2,5 mm Initial pressure: 3,0-4,0 atm |
| Cross linking at 200С |
120 min |
| Roller Brush |
Can be recommended for small and hard-to-reach areas. Thin the primer depending on the working conditions when using brush. |
|
Thinner |
Formula thinner EPPEX |
|
Cleaner |
Formula thinner EPPEX, thinners of type Р4, Р5. |
|
Finishing |
Tubing, pistol and other spraying tools must be cleaned after using. |
|
Cleaning |
Wash the tools after using immediately. The frequency of washing depends on the amount of sprayed material, the temperature and the time since the shutdown, including any time lag. |
